A control room LED wall is not a conference room screen scaled up. The wall stays on through the shift and often around the clock, operators sit within a few metres of it, the room is deliberately dim, and nobody can empty the room to swap a module. Those conditions, not screen size, decide whether a fine-pitch COB display belongs in a command centre.

This application guide is written for control room integrators, AV consultants, IT and OT project managers and procurement teams working at the evaluation stage. It covers how to select pixel pitch and panel size for a specific room, why flip-chip COB reliability, matte surface treatment, front service access and die-cast aluminium cabinets matter in a continuous-use environment, and which specifications should be verified on paper before an order is placed.

Described in one line, a fine-pitch COB control room display is an indoor direct-view LED video wall with a pixel pitch tight enough for close operator viewing, built by packaging the LED dies directly on the board and encapsulating them instead of mounting discrete lamp beads on the surface. DDW DISPLAY (Shenzhen DDW Technology Co.,Ltd.) builds this class of display as the QDCOB Series - an indoor fine-pitch COB display using quantum dot COB technology and COB integrated packaging, listed for control rooms, command centres, broadcast studios and conference rooms, with front maintenance and wall-mounted fixed installation.

Answer first: take the pitch from the closest operator seat, take the panel format from the room's wall dimensions, set brightness for a dim room rather than a bright lobby, then confirm refresh rate, viewing angle and front service access. DDW's control-room COB option is the QDCOB Series at P0.78, P0.9375, P1.25 and P1.5625, and the indoor fine-pitch reference range across this product family runs at 300-600 cd/m2 adjustable brightness, up to 8,000:1 contrast, 3,840 Hz and higher refresh rates, and a 160 degree viewing angle.

Problem Definition: the conditions that break an ordinary LED wall

The DDW application profile for control and command environments states the working conditions directly: indoor environment, close viewing distance, continuous operation, controlled lighting, limited installation space and high-definition content, with special requirements that include fine pixel pitch, seamless splicing, accurate colour reproduction, low brightness with high grayscale, quiet operation, efficient heat dissipation, front maintenance and stable long-term operation. Each of those conditions maps to a specific failure mode, and each one is bought or avoided at specification stage.

• Viewing distance. The closest viewer in the room is not a visitor at the back - it is the operator at the front desk, and the pixel structure becomes visible if the pitch is too coarse for that seat. Fine pitch solves it; nothing else does.
• Duty cycle. Control room installations are specified for daily continuous operation and 24/7 operation in control room applications, so thermal design, brightness derating and component selection decide whether the wall still matches its original calibration after months of use.
• Dim-room brightness. Driving a wall at full output in a dark room washes out black levels and tires operators over a long shift. The requirement is low brightness with high grayscale - the indoor fine-pitch reference range for this application starts at 300-600 cd/m2 adjustable.
• Seams. Multi-window layouts place maps, camera tiles and dashboards side by side, and a bezel line running through the middle of a map is not acceptable. Seamless splicing is a functional requirement, not a cosmetic one.
• Colour consistency. Operators read colour as data. Across a control wall, the same status colour must mean the same thing at every position, which is why colour depth of 14-16 bit, accurate colour reproduction and adjustable colour temperature of 2,000 K to 9,500 K matter more here than peak brightness.
• Glare. Ceiling fixtures and desk monitors reflect off the wall. If the surface is glossy, the display becomes a mirror during the night shift; matte surface treatment is what keeps the image readable.
• Service access and space. Control rooms rarely offer a rear service corridor, and a wall that needs rear access forces the room layout to change. Front maintenance and full front access keep a fixed, wall-mounted installation viable.
• Heat and noise. The wall shares the room with people who are listening to each other. Power figures such as a maximum of 600 W/m2 and an average of 160-265 W/m2 are not just electricity costs - they are the cooling load and the acoustic load that the room has to absorb.

None of these are cosmetic details. A wall that ignores one of them still switches on; it simply fails the room - washed-out blacks at night, a visible pixel grid at the front desk, a service visit that requires emptying the control room, or fan noise the operators learn to hate.

Industry Background: why fine-pitch COB moved into control rooms

Control room visualisation sits inside the wider LED display category. Mordor Intelligence projects the global LED display market at USD 20.73 billion in 2026, growing to USD 26.98 billion by 2031, and estimates China's LED display market at 660 billion RMB in 2024 with a 15.79% CAGR, outpacing the global average. At the packaging level, Grand View Research projects micro-LED growing at a 77.4% CAGR from 2024 to 2030 to approximately USD 25.65 billion - the same direction that fine-pitch COB packaging has been moving in the sub-P2 indoor segment.

Two procurement consequences follow. First, fine pitch is no longer a niche order: it is a mainstream indoor category, which means buyers can and should compare specification sheets from more than one manufacturer instead of treating a fine-pitch wall as a custom build. Second, documentation matters as much as the display. For import paperwork, LED displays are generally classified under HS code 852859, 'monitors other than cathode-ray tube', per the UN Statistics Division - worth confirming with a customs broker, because duty treatment and market-access requirements follow the code.

Supply-side scale matters in this application because a control room wall is typically 10 to 40 m2 of a single colour- and brightness-matched batch rather than a one-off panel order. DDW DISPLAY, founded in 2012, operates a 10,000 square metre manufacturing facility with more than 100 employees, a 15-engineer R&D team and an annual output of more than 800,000 units, with an export ratio above 95% and delivered projects in more than 120 countries and regions across North America, Europe, the Middle East, Asia-Pacific, Latin America and Africa.

Operationally, the change in this decade has been a move away from bezel-tiled walls toward seamless fine-pitch surfaces in the same room, with COB packaging taking over the tightest pitches. That shift is what makes the questions in the next section answerable with published specifications rather than project-specific promises.

Detailed Solution: the fine-pitch COB configuration built for continuous use

The configuration DDW DISPLAY builds for this application class is the QDCOB Series: an indoor fine-pitch COB LED display with quantum dot COB technology, COB integrated packaging, front maintenance and wall-mounted fixed installation in an aluminium cabinet. Its pixel pitch options are P0.78, P0.9375, P1.25 and P1.5625, and its listed application industries include control rooms, command centres, broadcast studios, conference rooms, corporate showrooms and smart meeting rooms.

Why flip-chip COB construction changes reliability

In an SMD fine-pitch module, the LED packages sit on the surface with exposed solder joints and lens bodies. In a COB module, the dies are bonded directly to the board and covered by an encapsulation layer, so there are no protruding lamp beads to knock, no exposed joints sitting in the path of a cleaning cloth, and no lens surfaces to collect dust. Flip-chip die bonding removes the thin wire loops used in conventional wire-bonded packages, which means fewer mechanical and electrical failure points during handling, panel removal and thermal cycling over a long duty cycle.

The practical benefit in a control room is that a normally clumsy interaction - an operator brushing past a low wall, a technician cleaning the surface, a module being extracted from the front - does not translate into pixel damage. It also keeps the emitting surface optically consistent, which is what allows a matte finish to work properly.

Matte surface treatment: the dim-room detail that decides comfort

A matte COB surface diffuses reflection instead of mirroring it. In a dark room lit by ceiling panels and monitor glow, that is the difference between a readable wall and one that shows a stripe of reflected light across a dashboard. Because the surface is diffused, contrast holds up as operators move off the centre line, which pairs with the 160 degree viewing angle of the indoor fine-pitch reference specification. It also matters when cameras share the room: a control wall that doubles as a briefing or broadcast background must read cleanly on camera, and broadcast studios appear in the same QDCOB application list as control rooms.

Front service access is a scheduling requirement, not a convenience

Front maintenance is listed as standard on the QDCOB Series, and full front access on the indoor fine-pitch HK Series. In practice this means the wall keeps its wall-mounted, fixed installation and the room does not need to be cleared or reconfigured to reach the modules. Where installation space is limited - and it usually is - this is the item that keeps the AV design workable. The related discipline is spares policy: hold modules, receiving cards and power supplies from the same production family so a replacement matches colour and brightness without a full recalibration.

Die-cast aluminium cabinets hold the seam

The cabinet is the jig that keeps the pixel grid aligned. The indoor fine-pitch HK Series is specified at a cabinet flatness of 0.1 mm or better, and aluminium cabinet or aluminium profile construction runs across the QDCOB Series and the wider DDW indoor fine-pitch range. An aluminium cabinet resists the small dimensional drift that a lighter or less rigid frame can accumulate over a continuous duty cycle, and it also conducts heat away from the electronics rather than trapping it. For handling and structural planning, reference cabinet weights are 6.5 kg for a 640 x 480 mm cabinet (HK Series) and 6.4 kg for a 1,000 x 250 mm cabinet (FU Series).

Specification anchor: verified figures to design against

The figures below are the values to use when drawing the room. Where a series publishes a performance class rather than a single number, that is stated plainly rather than guessed at.

Step-by-Step Breakdown: specifying the wall for the room

Step 1 - Fix the viewing geometry before choosing a pitch

Start with the nearest operator eye position, not the room's longest dimension. Record where the front desks sit, whether the wall is also read from a standing position, how many rows sit behind them, and whether anyone views the wall over a camera feed. The pitch decision follows from that geometry and from the cost curve: a smaller pixel pitch provides higher pixel density and better close-range detail, but it usually increases project cost, so the correct answer is the coarsest pitch that still delivers sufficient image quality at the real viewing distance.

Step 2 - Turn the pitch decision into a whole-panel array

The next decision is panel format, because it determines how cleanly the wall maps onto the room. Two panel formats are used in this application class: 600 x 337.5 mm, which is a 16:9 unit, and 600 x 675 mm, which doubles the height per row. A 4 x 4 array of 600 x 337.5 mm panels produces a 2,400 x 1,350 mm wall; the same 4 x 4 array in the 600 x 675 mm format produces 2,400 x 2,700 mm with half the panel count, and therefore half the power supplies, receiving cards and horizontal seams to align. The 600 x 337.5 mm format is the better choice when the available wall band is short or when the screen must sit above a desk line, because the vertical increments are finer.

Check the pixel count before the layout is frozen. At P1.25, a 600 mm wide panel holds 480 pixels across and 270 pixels down a 337.5 mm panel; at P0.9375, the same panel holds 640 by 360 pixels. Working in whole panels keeps the pixel grid aligned to the content and avoids cut modules at the edges. Where a room is dimensioned around a different module, the DDW indoor fine-pitch family also uses 640 x 480 mm cabinets (HK Series) and 500 x 250 mm, 750 x 250 mm or 1,000 x 250 mm cabinets (FU Series).

Step 3 - Set brightness for the room, not for the lobby

Indoor fine-pitch reference brightness starts at 300-600 cd/m2 adjustable, which covers a controlled-lighting control room comfortably. The higher-output 800-1,000 nits configuration (FU Series, P1.56-P2.9) is worth specifying only where daylight reaches the wall directly or where the same surface doubles as a presentation screen for visitors. In a dim room, the goal is low brightness with high grayscale: contrast up to 8,000:1 and colour depth of 14-16 bit keep dashboard gradients and dark CCTV tiles readable without pushing the panel to maximum output. Colour temperature is adjustable from 2,000 K to 9,500 K, which allows the wall to be matched to the room's lighting for camera work.

Step 4 - Confirm refresh, viewing angle and seam behaviour

A refresh rate of 3,840 Hz and above (HK Series), or 7,680 Hz (FU Series), keeps the wall flicker-free to the eye and on camera - important when the control room feeds a broadcast or recording system. A 160 degree horizontal and vertical viewing angle keeps data legible for operators at the far ends of the console line, and seamless splicing keeps the bezel line out of multi-window layouts.

Step 5 - Engineer service access and spares from the start

Front maintenance (QDCOB Series, FU Series, AIOF Series) and full front access (HK Series) mean the wall does not need rear clearance, which protects the room layout in tight spaces. Pair that with a spares package held from the same production batch so replacement modules match without a full recalibration.

Step 6 - Size power, heat and structure

Input is AC 110-240 V at 50-60 Hz, with indoor reference power of 600 W/m2 maximum and 160-265 W/m2 average. Size circuits, UPS capacity and cooling for the maximum figure, but budget running cost and thermal load on the average figure. Indoor ratings run at IP45 (HK Series) and IP31 (FU Series), so the wall is protected from dust rather than from water - cleaning should be dry or damp, never wet through the seams. Structurally, plan around a wall-mounted fixed installation with an aluminium cabinet and cabinet flatness of 0.1 mm or better.

Step 7 - Validate the manufacturer, not only the datasheet

Three evidence groups separate a supplier that can support a control room from one that can ship a panel. The first is certification: DDW DISPLAY holds CE-EMC certificate BKC25062531FC issued by Shenzhen BKC Testing Co., Ltd. against EN 55032:2015+A11:2020+A1:2020, EN IEC 61000-3-2:2019+A1:2021+A2:2024, EN 61000-3-3:2013+A1:2019+A2:2021 and EN 55035:2017+A11:2020, valid to 1 July 2030; CE-LVD certificate HXTS2506230030001-1 against EN IEC 62368-1:2020+A11:2020 under Directive 2014/35/EU; FCC Supplier's Declaration of Conformity BKC25062532FC-R1 against FCC Part 15 Subpart B and ANSI C63.4:2014; EU RoHS 2.0 certificate HXTS2506230030007-1 under Directive 2011/65/EU; and ISO 9001 certificate 12824Q21369R0S from China Standards Institute (Beijing) Certification Center covering the production of LED display, LCD video wall and digital signage.

The second is production control: 100% product inspection, aging test, module testing, brightness and colour calibration, waterproof test, power safety test and performance inspection before shipment. The third is commercial reality: a monthly capacity of 8,000 square metres, a minimum order of 1 unit or project-based, and a lead time of 15-30 days for standard products, with customized projects depending on product design, quantity and technical requirements. A control room rollout that spans several rooms should be planned around those three groups, not around a price list alone.

Use Cases: what the installed record shows

Control room projects rarely appear in public case libraries, so the closest evidence is the professional-room record from the same platform and the same fine-pitch family.

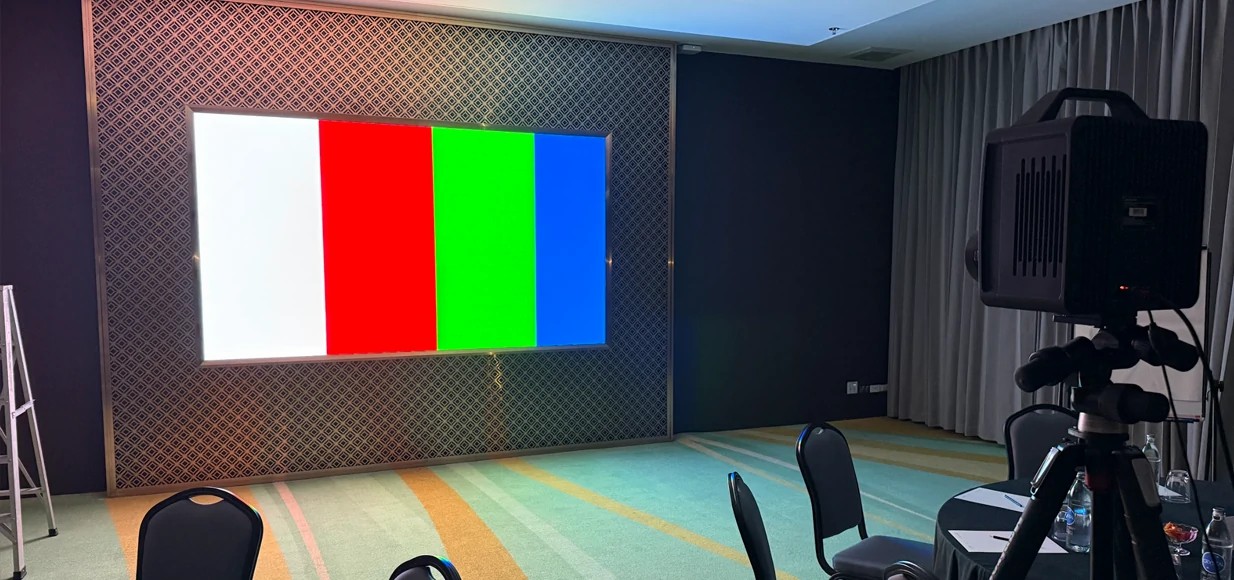

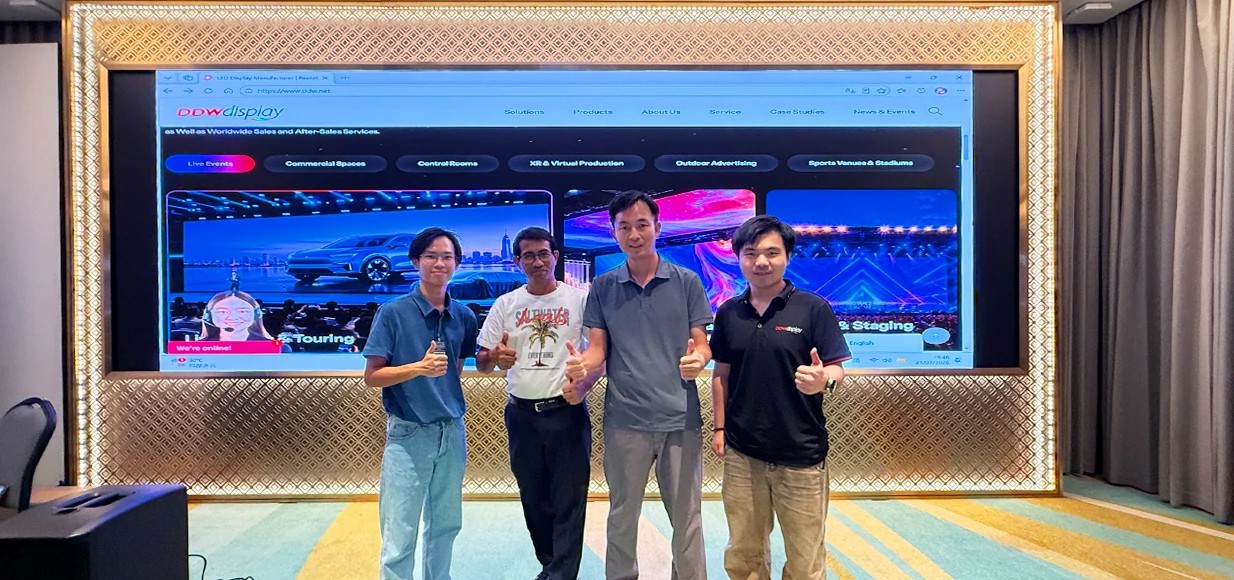

• Thailand - QDCOB Series P1.56 quantum dot COB video wall. A professional conference room installation using the same COB platform. The project record notes fine-pitch display, professional installation, system integration, on-site colour calibration, accurate colour performance and stable operation - the same qualities a control room expects, on a shorter duty cycle.
• Pakistan - 26 square metre FU Series P1.56 indoor fine-pitch display. A corporate conference room installation aimed at visual clarity and communication effectiveness, showing the fine-pitch family performing at desk-level viewing distances in a room where content, not entertainment, is the point.
• Malaysia - 10.56 x 2.4 m FL Series GOB P1.56 indoor display, approximately 25.34 square metres. A showroom installation delivering high-definition close-viewing performance for product demonstration and multimedia content, in operation for a 10-year project duration. It demonstrates what a surface-protected fine-pitch wall does in a room where people stand close to the display.

Comparison Table: which indoor configuration fits the room

Read the table as a filter, then verify against the room. If the closest seat is very close and the content is dense, the QDCOB Series is the correct family and the pitch decision moves inside it. If the project needs a published brightness and contrast figure for the electrical and lighting design, the HK Series data set gives 300-600 cd/m2 and up to 8,000:1 with 3,840 Hz and above. If the room receives daylight, the higher-output FU configuration is the relevant option. A structured shortlist for any of these should confirm, in writing: pitch and total pixel count, panel format and resulting wall dimensions, brightness range and grayscale behaviour at low output, refresh rate, viewing angle, front service access, cabinet material and flatness, power figures, current certification for the destination market, spare-parts policy, and lead time.

FAQ: control room COB display questions buyers ask

Conclusion: the decision order that survives a control room

Fine-pitch COB displays work in control rooms and command centres when the room is specified first and the product second. Define the closest operator distance, choose the coarsest pitch that still holds detail at that distance, turn the pitch into a whole-panel array using the panel format that fits the wall band, set brightness low with high grayscale for a dim room, confirm 3,840 Hz or higher refresh and a 160 degree viewing angle, require front service access on a wall-mounted aluminium cabinet, and verify certification, quality control and lead time before the order - lead time is 15-30 days for standard products, with customized projects depending on design, quantity and technical requirements.
